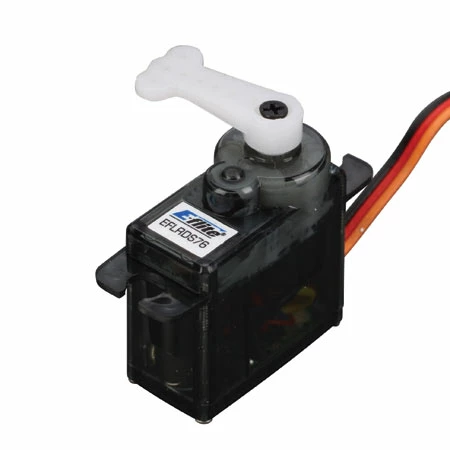

Digital high speed, high torque, precise centering servo is perfect for electric, park flyer, and high-performance 3D models, micro and mini electric helicopters, hand launch gliders.  Replacement servo for the Blade 450 3D Heli.

7.6gm DS76 Digital Sub-Micro Digital Servo Features:

• Digital amplifier for superior accuracy, response and holding torque
• High speed, .11 sec @ 60° @ 4.8V for quick control response
• High torque, 24.2 oz-in (1.75 kg-cm) @ 4.8V
• Precise Centering – less than 1°
• Lightweight, just 7.6 grams
• Universal connector compatible with major brand receivers
• Includes complete mounting hardware

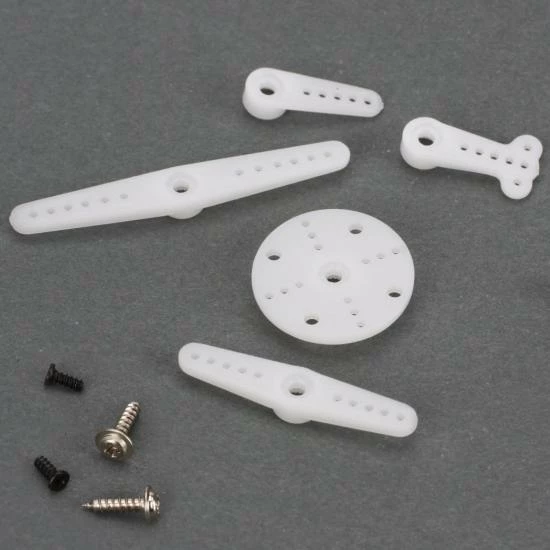

• Includes multiple servo arms including an extra-long 3D servo arm for extreme throws
• Replacement servo for Blade 450 3D

7.6gm DS76 Digital Sub-Micro Digital Servo Specifications:

• Size Category: Minis and Micros
• Type: Digital
• Application: Sub-micro and Micro-sized airplanes and helis
• Torque: 24.2 oz-in (1.75kg-cm) @ 4.8V; 28.0 oz-in (2.00kg-cm) @ 6.0V
• Speed: 0.11 sec/60° @ 4.8V; 0.09 sec/60° @ 6.0V
• Length: 0.90 in (23.0mm)
• Width: 0.45 in (11.5mm)
• Height: 0.96 in (24.0mm)
• Weight: 0.27 oz (7.6g)
• Motor Type: Coreless
• Connector Type: Universal
• Gear Type: Nylon
• Current Draw Idle: 27mA @ 4.8V
• Current Draw Stall: 473mA @ 4.8V
• Voltage: 4.8V-6.0V DC
• Deadband:

Spec

• Brand: E Flite
• Part No: EFLRDS76
• Barcode: 605482036969
• Fitment: Option Part
• Fitment: Standard Part
