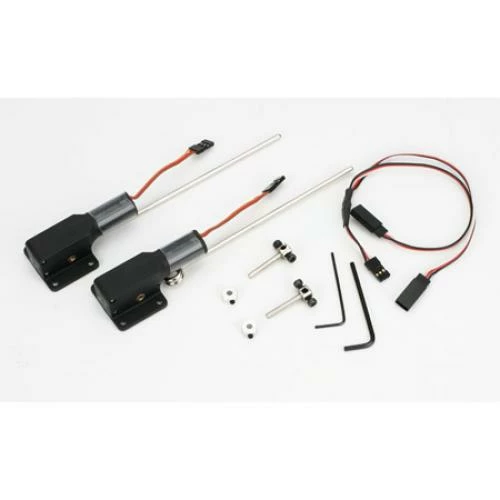

You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. The completely self-contained E-flite^® retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially-designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.

10 – 15 Size Main Electric Retracts Features:

• Robust landing gear strut and mounting bracket
• Integrated electric motor with a micro PCB
• Built-in over-current protection
• Aircraft weight: 2.00?4.50 lb (0.90?2.00 kg)
• Strut diameter 0.118 in (3mm)
• Strut length 0.866 in (22mm)

10 – 15 Size Main Electric Retracts Specfications:

• Connector Type:
  : Universal
• Current Draw Idle:
  : 5mA
• Current Draw Stall:
  : 200mA
• Motor Type:
  : Electric brushed can
• Speed:
  : 4.8V (1.25 sec), 6.0V (1.0 sec), 7.4V (.80 sec)
• Voltage:
  : 4.8–7.4V

Spec

• Brand: E Flite
• Part No: EFLG100
• Barcode: 605482775141
• Fitment: Option Part
